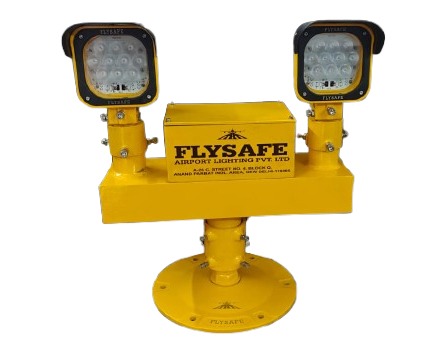

ELEVATED LED Runway Guard Light

The elevated  LED based elevated type high intensity uni-directional flashing Runway Guard light(yellow) fixture complete with LED lamp/s, integral electronics driver, all accessories for mounting and fixing on a 330 mm dia CI transformer housing box suitable for operation with existing 2.8 - 6.6 Amps Circuit & CCRs conforming to latest ICAO/ CAR Standards.

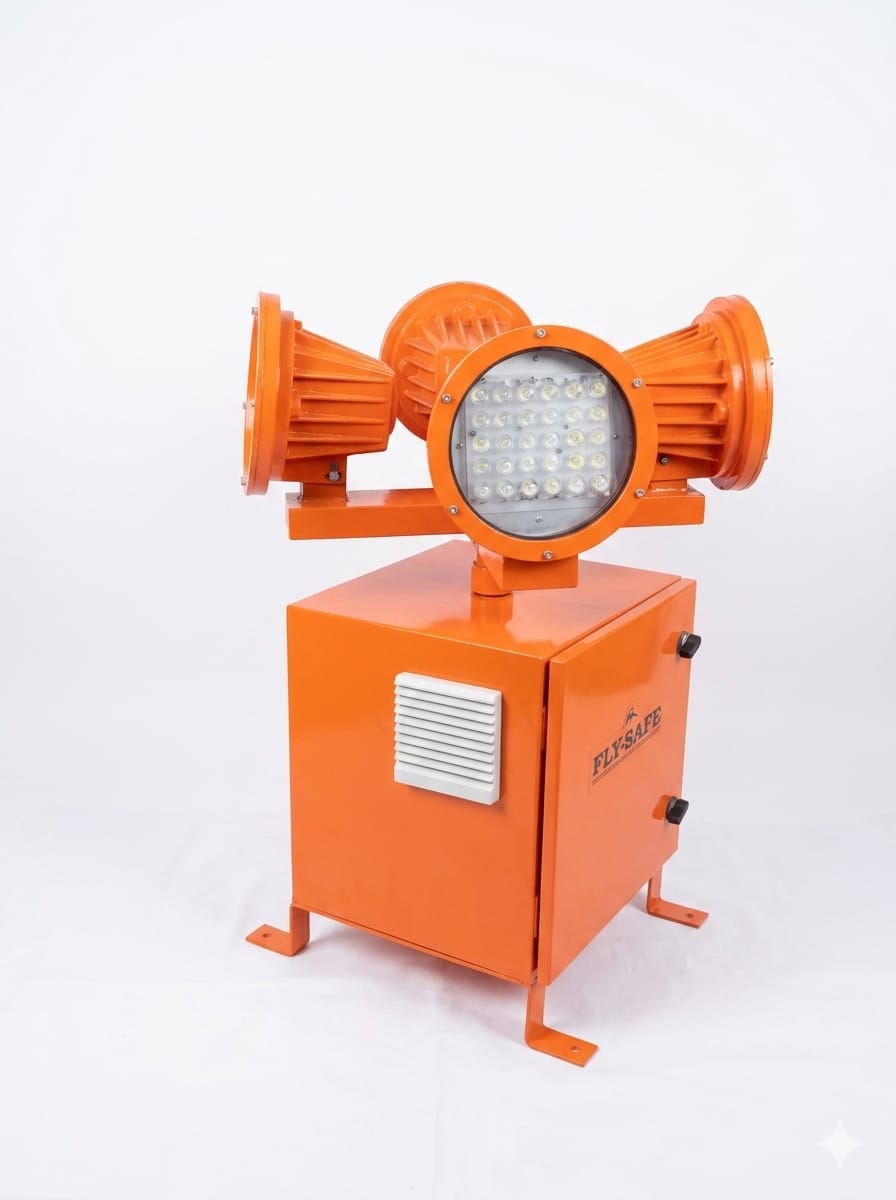

AIRPORT LED ROTATING BEACON LIGHT

FLYSAFE Airport rotating Beacon , a multi-LED type, is a compact, lightweight, and high-quality LED solution that guides pilots during night operations. This combination ensures that the product is dependable and can be easily installed on flat surfaces. Moreover, it meets the requirements of ICAO Annex 14 Para 5.3.3

LED Airport Beacon are intended to be used at night and/or when airports are not easily identifiable by other means. They are generally used to identify the presence of an aerodrome.

KEY FEATURES/Technical Specifications

1. Color:- Rotating alternately flashing green and white
2. Power supply:AC 220V-240V
3. Rate dpower:- 190W
4. The beacon shall be designed as rotating beacon with a constant light source.
5. The light from the beacon should be visible at all azimuths, and the center of the beam of the beacon at the airport should be set to 5° above the horizontal
6. The total flash rate should be 20 to 30 times per minute. The duration of a single flash should be 75ms ~ 300ms.
7. LED Lifetime > 50000 Hours
8. Working Temperature :-

• Class 1: -30C to +55C (-22F to +131F)
• Class 2: -55C to +55C (-67F to +131F)
